Create a spectrogram

Source: R/main.R
create_spectrogram.Rd

Create a spectrogram

Usage

create_spectrogram

Format

A Praat script

wav_file_in

path for the wave to read

max_frequency

maximum frequency to show for the spectrogram

spectrogram_out

path of the .Spectrogram file to create

Example usage

library(tjm.praat)

wav <- system.file(
  "test-wavs-a/tidyverse-tidyverse.wav",
  package = "tjm.praat"
)

spectrogram_out <- tempfile("tidyverse-tidyverse", fileext = ".Spectrogram")

f_create_spectrogram <- wrap_praat_script(
  script_code_to_run = create_spectrogram,
  returning = "last-argument"
)

data_spectrogram <- wav |>
  f_create_spectrogram(
    spectrogram_out = spectrogram_out,
    max_frequency = 6000
  ) |>
  read_spectrogram()

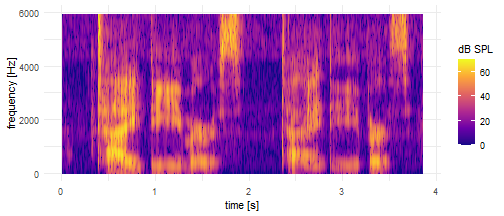

library(ggplot2)
ggplot(data_spectrogram) +
  aes(x = time, y = frequency) +
  geom_raster(aes(fill = db)) +
  theme_minimal() +
  scale_fill_viridis_c(option = "C") +
  labs(x = "time [s]", y = "frequency [Hz]", fill = "dB SPL")

Praat source code

print(f_create_spectrogram, condense = FALSE)
function (wav_file_in = NULL, max_frequency = "5000", spectrogram_out = NULL)
# <wrapped_praat_script>
# returning: "last-argument"
form: "Create a spectrogram"
  infile: "Wav_file_in", ""
  positive: "Max_frequency", "5000"
  outfile: "Spectrogram_out", ""
endform
Read from file: wav_file_in$
Pre-emphasize (in-place): 50
To Spectrogram: 0.005, max_frequency, 0.002, 20, "Gaussian"
Save as text file: spectrogram_out$
